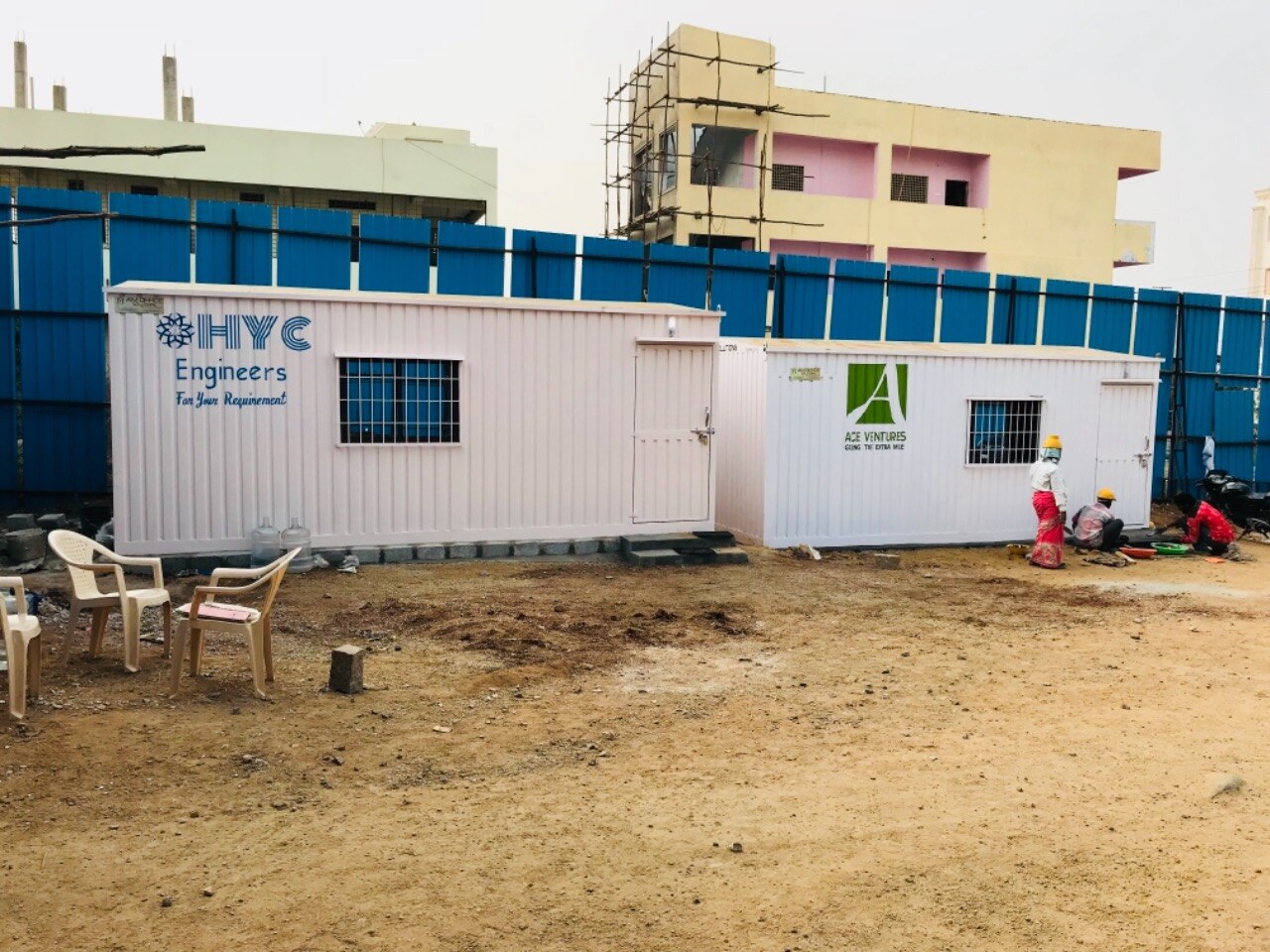

Cabin Solution

Products INR  0 INR  0
  • S
  • M
  • L
  • 1
  • 2
  • 3
Assured icon not found

TECHNICAL SPECIFICATION SI NO COMPONENT DESCRIPTION 01 Bottom Frame 100mmx50mm G, C Channel & pipe ISI Marked. 02 Top Frame 50mmx50mm Ms Square Pipe ISI Marked. 03 Stiffener Bottom 75mmx40mm C channel Angles & pipes ISI Marked. 04 Stiffener Top 40mmx20mm MS square pipe ISI Marked. 05 Side Post 50mmx50mm Ms square pipe ISI Marked. 06 Side Wall Stiffeners Specially formed CR sheets of make TATA / Jindal. 07 Paneling Outside Specially formed CR sheets TATA / Jindal. 08 Internal Wall Paneling 8mm OSL MDF of make Leo Classic. 09 Roof Outside Jindal CR sheet of 1.2mm thick properly sloped & water tight. 10 False Ceiling 8mm OSL MDF- Plane White of make Leo Classic. 11 Flooring 18mm Bison Panel with Vinyl carpet. 12 Aluminium Windows Sliding Aluminium Powder Coated Windows With 4mm Glass. 13 Door Ms door with holder draft & handles. 14 Insulation 50mm glass wool insulation on wall & 25mm on ceiling. 15 Wiring All wiring of concealed type & PVC insulated copper wire. 16 Electrical Fittings  All electrical fittings in portable cabin shall be 220-240V.AC 50Hz.  Tubes, Bulkhead, Fan, switches, Sockets & Telephone.  Air conditioner point (MCB) (All type of window Air conditioning Systems as desired upon can be Installed polycab wire. 17 Earthing Earthing point will be provided for safety. 18 Outside Painting 1 coat of Epoxy primer with 2 coats of Epoxy Paint. 19 Hooks Specially formed hooks for easy lifting and shifting.

Availability: In Stock

Tags :

Billing Information

Order details QTY Total

Product Name 5b6b364d277b75052ecba566

Rs   2100

Note: Delivery usually takes 2.5 days, depending on availability and your location.
